OpenBOM™ Add-In For Altium Designer

OpenBOM add is an Altium Design extension available via Altium Extension App Store. Contact OpenBOM support and provide your Altium account email to get access.

Manage catalogs and extract BOM directly from Altium Designer

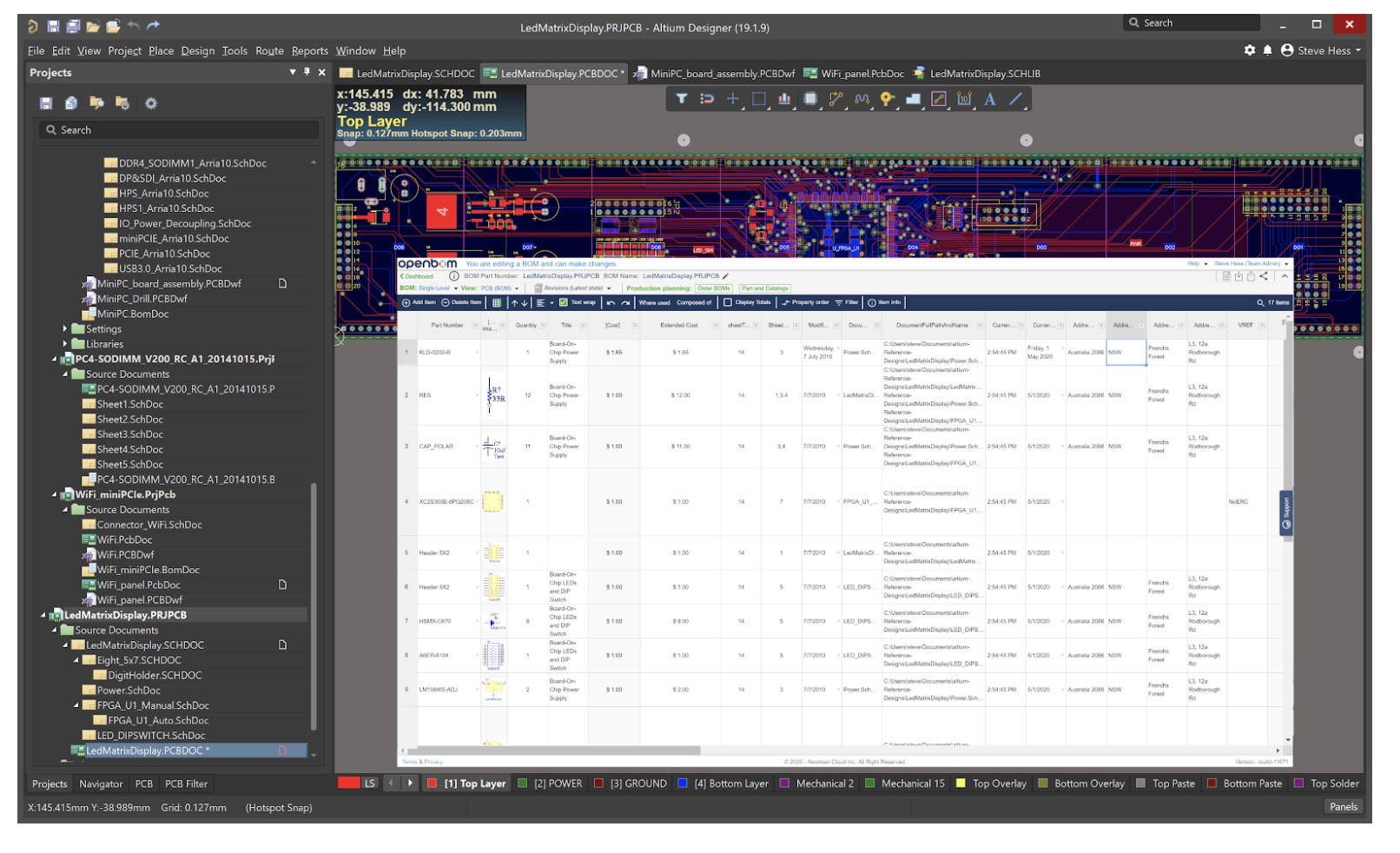

If you’re using Altium Designer for your PCB design projects, OpenBOM gives you a direct integration with Altium Designer. The integration extracts data from Altium Designer and uploads it to OpenBOM. The integration also will keep data in sync and merge changes between Altium Designer design and OpenBOM Bill of Materials.

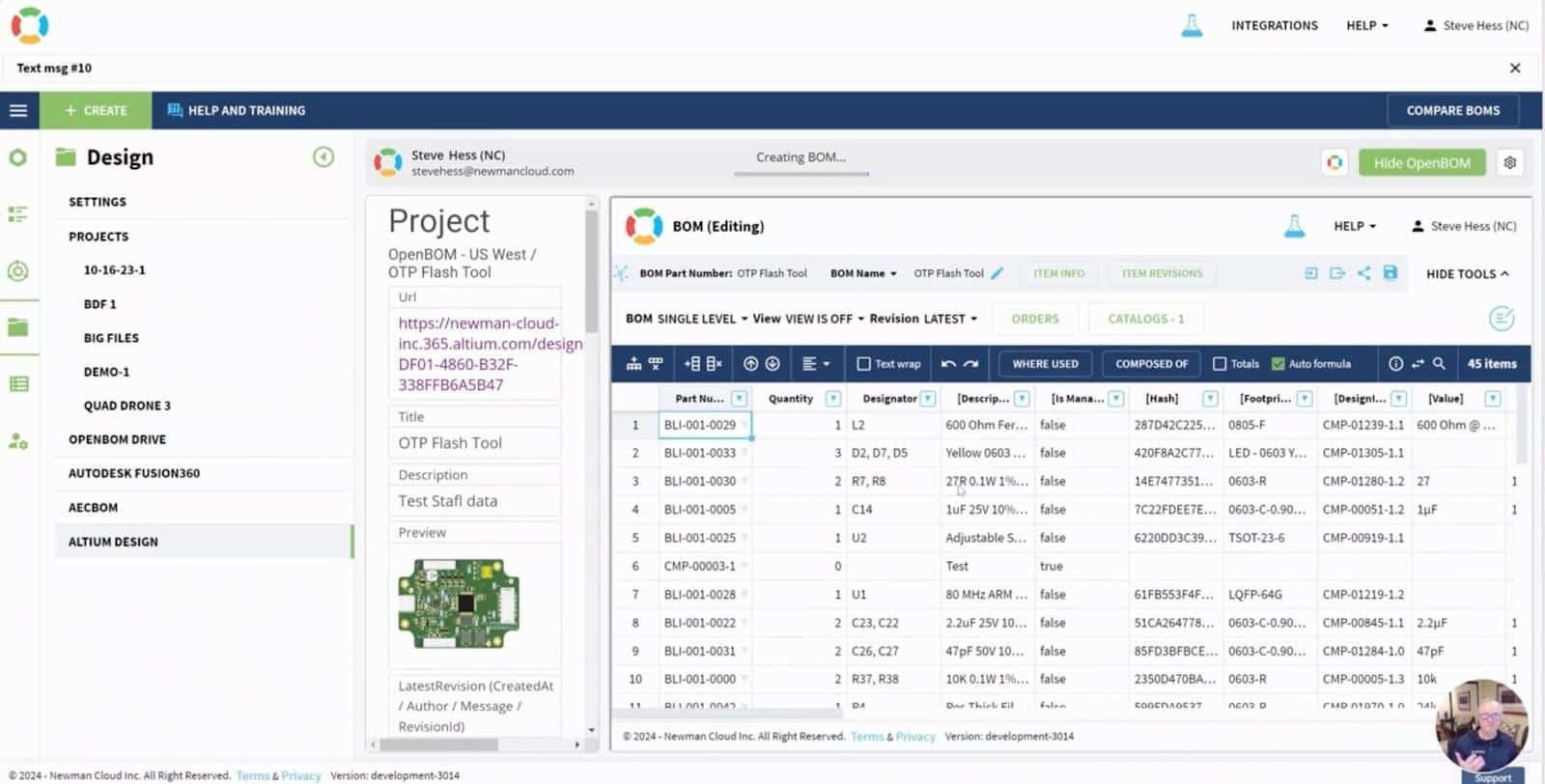

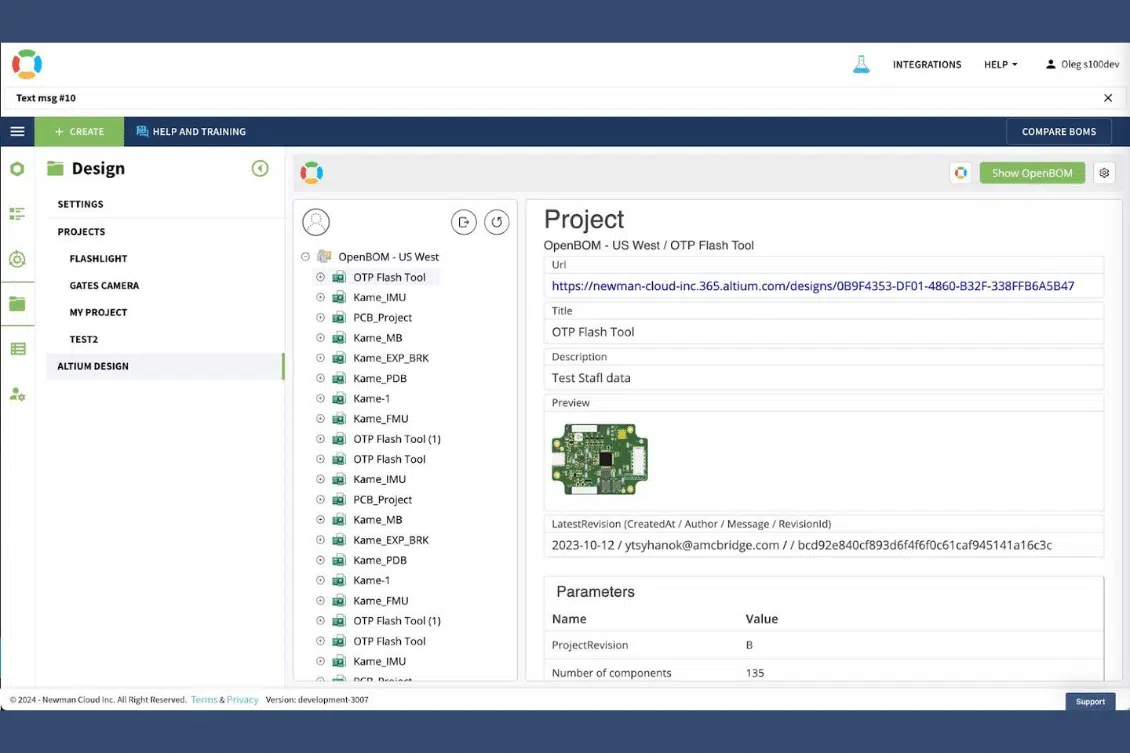

OpenBOM integrates with Altium 365 directly using Nexar API platform. It is part of OpenBOM Design Projects. It includes the ability to select a project in online web interface in OpenBOM and retrieve the BOM instantly. Learn more about it here – OpenBOM for Altium 365.

Main features:

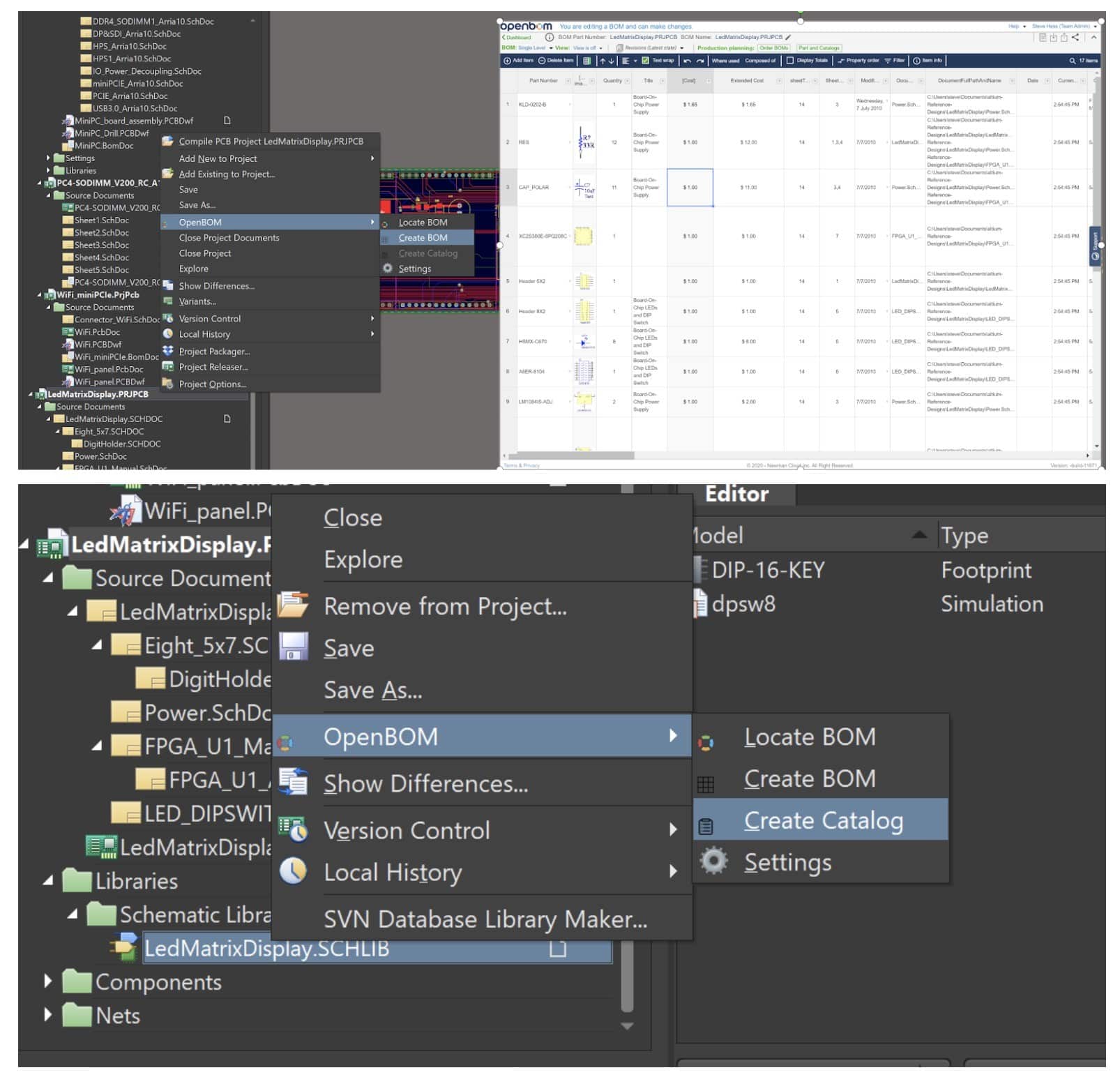

  • The embedded add-in creates BOMs directly from Altium schematics.
  • Easily send Altium Libraries to OpenBOM with one click
  • Include ref-des, library metadata and hi-rez thumbnail images and more
  • Manage which and how properties from Altium designs are sent to OpenBOM
  • Extend BOM by adding Rows and Columns on-the-fly
  • Easily include and manage non-modeled items like glue and tape
  • Create Vendor Lists and assign component Vendors
  • Easily include and manage non-modeled items like glue and tape
  • Manage and Rollup Costs, other properties for all parts.  See the total cost of the board.
  • Exclude unwanted properties from BOM
  • Create Planning BOMs and Purchase Orders with a single click
  • Automatic generation of derivative files (PDF, STEP, DWG, etc.)
  • Direct integration with Altium 365 BOM

If you have questions, please contact OpenBOM support (support at openbom dot com)
